HDF5 composite CAE specifications#

This document describes the specifications for the HDF5 composite CAE file format, which exchanges composite layup information between CAE tools. The key layup concepts are:

  • Mesh: You store geometrical information on the mesh, which consists of nodes and elements.

  • Component: A component represents a layer. Each component references a data_map and the mesh.

  • Data map: The data_map stores the geometrical information associated with each element or node in the mesh.

This includes thickness, reference direction, and fiber direction.

Note

HDF5 is a binary file format, so you need a viewer to open it. You can download one here:

https://www.hdfgroup.org/download-hdfview/

Tree overview#

HDF5 Composite CAE Specification Tree

Click to view full size#

General information#

Node Types in HDF5 tree#

Container node#

A container node is a group node that contains a list of object nodes of the same type.

Examples: fabrics, meshes, rosettes

Named object node#

A named object node represents a single object. To avoid the naming restrictions of HDF5 nodes, store the external object name in the title attribute.

Store the object’s associated data in the node’s attributes or in attached data nodes.

Examples: fabric, mesh, rosette

Data node#

A data node stores either array data or scalar data in its attributes.

Specification of node names#

To support interoperability with high-level interfaces (such as PyTables), HDF5 node names must match the Perl-compatible regular expression '^[a-zA-Z_][a-zA-Z0-9_]*$'. Node names must be unique within each group.

General comments#

All string attributes use UTF-8 encoding.

Root level nodes#

composite_cae#

All attributes are optional.

Attribute

Type

Values

format_version

string

1.0

last_modified

datestring

“2010-08-23 13:31:13Z”

vendor

string

“ansys, inc.”

unit_system

string

“SI”, “Imperial”

length_unit

string

“m”, “cm”, “mm”, “um”, “in”

mass_unit

string

“kg”, “t”, “g”, “lbf”, “lbm”

time_unit

string

“s”

temp_unit

string

“C”, “K”, “F”

angles

string

“deg”, “rad”

If you do not specify a unit system, the importer uses its default unit system. The *_unit attributes take precedence over the unit_system attribute. For example, if unit_system is set to “SI” and length_unit is “mm,” the length unit is “mm.””

composite_cae->global_coord_sys#

4 by 3 array of doubles that defines the origin and its directions for the entire model.

[origin x]   [origin y]   [origin z]
[dir1 x]     [dir1 y]     [dir1 z]
[dir2 x]     [dir2 y]     [dir2 z]
[dir3 x]     [dir3 y]     [dir3 z]

This attribute is currently not supported by Ansys.

Material data#

material_data->fabrics->fabric(named)#

material_data->fabrics->fabric(named)->orientations (Obsolete)#

Array of doubles.

[0, 45, -45]

Note

Ansys does not read or write this property. It will be removed in a future release.

material_data->fabrics->fabric(named)->mechanical#

Attribute

Type

Description

architecture

string (optional)

uni, woven

weight_per_area

double

cured_thickness

double

E1

double (optional)

E2

double (optional)

E3

double (optional)

G12

double (optional)

G23

double (optional)

G31

double (optional)

v12

double (optional)

v13

double (optional)

v23

double (optional)

alpha1

double (optional)

alpha2

double (optional)

alpha_ref_temp

double (optional)

material_data->fabrics->fabric(named)->cost#

Attribute

Type

Description

currency

string

EUR, USD, etc

cost_per_area

double

material_data->stackups->stackup(named)->cost#

Attribute

Type

Description

currency

string

EUR, USD, etc.

cost_per_area

double

material_data->stackups->stackup(named)->fabric#

Attribute

Type

Description

number

unsigned

Determines order of fabrics within stackup.

angle

double

Angle of fabric within stackup.

Meshes#

meshes->mesh(named)->node_labels#

n by 1 array of integers.

[unique node id]

meshes->mesh(named)->nodes#

n by 3 array of doubles.

[node x]  [node y]  [node z]

meshes->mesh(named)->element_labels#

n by 1 array of integers.

[unique element id]

meshes->mesh(named)->element_types#

n by 1 array of integers.

[element type]

Currently, the following element types are defined:

  • 3: 3 node shell

  • 4: 4 node shell

  • 6: 6 node shell

  • 8: 8 node shell

The list of element types may be expanded in future releases, for example by using 108 and 120 for 8- and 20-node bricks.

meshes->mesh(named)->element_nodes#

n by m VLArray of integers.

[node 1] [node 2] … [node m]

Defines the element’s nodes, with node indices that point directly to entries in the nodes and node_labels arrays.

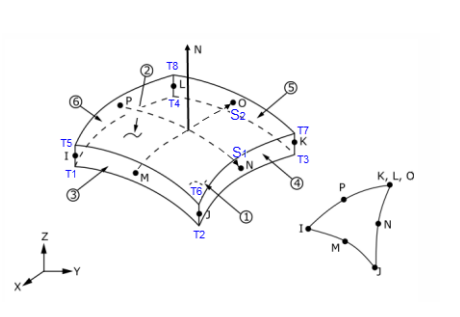

The order of the nodes must follow the indices shown below:

  • 3 nodes (linear triangle): I, J, K

  • 4 nodes (linear rectangle): I, J, K, L

  • 6 nodes (quadratic triangle): I, J, K, M, N, P

  • 8 nodes (quadratic rectangle): I, J, K, L, M, N, O, P

Element Types

Click to view full size.#

Note

A VLArray data set is used here because the mesh can contain element of different types (see meshes->mesh(named)->element_types).

meshes->mesh(named)->edge_sets->edge_set(named)#

Array of unsigned integers. Contains node indices that reference the nodes in this set.

meshes->mesh(named)->element_sets->element_set(named)#

Array of unsigned integers. Contains element indices that reference the elements in this set.

Components#

components->component(named)#

Attributes:

Attribute

Type

Description

type

string

ply, core, etc.

layer_id

integer

The step value and global identifier. It determines the order of the plies (increasing from bottom to top).

orientation

double

The nominal orientation angle relative to the reference direction.

mapping_type

string

Note

The mapping_type attribute is optional and will be detailed later; because ACP can use multiple rosettes to define a ply’s reference direction, several mapping types are defined, including interpolation algorithms such as “minimum distance” and “minimum angle.”

components->component(named)->placement_coord_sys#

4 by 3 array of doubles.

[origin x]   [origin y]   [origin z]
[dir1 x]     [dir1 y]     [dir1 z]
[dir2 x]     [dir2 y]     [dir2 z]
[normal x]   [normal y]   [normal z]

The placement_coord_sys is used for two purposes:

  • Its normal defines the default offset direction of the layup.

  • Its origin and dir1 define the starting point and initial direction of the draping calculation.

components->component(named)->material#

Softlink

Defines the ply material and refers to an object in material_data->fabrics or material_data->stackups.

components->component(named)->element_set#

Softlink

Defines a link to an element set of a mesh and specifies the ply extent.

components->component(named)->data_map#

Softlink

Defines a link to the data map of this component.

The following restrictions and rules apply:

  • If the data_map contains a thickness, a “material” of type material_data->stackups is not supported.

  • If data_map->thickness is not defined, the thickness is computed from cured_thickness when the material is a “fabric,” or from the sum of all cured_thickness values when material_data->stackup.

  • If matorient_1_angles is not present, it set equal to component->orientation.

  • If matorient_2_angles is not present, it is computed as: matorient_2_angles = matorient_1_angles + 90°.

components->component(named)->rosettes->rosette(named)#

Softlink (Optional)

Defines a link to the rosettes of this component.

Rosettes#

rosettes->rosette(named)#

Attributes:

Attribute

Type

Description

mapping_type

string

Note

The possible values of the rosette mapping_type are not yet specified. FiberSIM defines the mapping types “translational,” “standard,” and “rotational.” ACP defines the standard rosette types “parallel,” “radial,” “cylindrical,” and “spherical.” The exact definition of this attribute has been postponed because this information is optional and is not required to map the ply orientation field correctly.

rosettes->rosette(named)->coord_sys#

4 by 3 array of doubles.

[origin x]   [origin y]   [origin z]
[dir1 x]     [dir1 y]     [dir1 z]
[dir2 x]     [dir2 y]     [dir2 z]
[normal x]   [normal y]   [normal z]

Data maps#

data_maps->data_map(named)->element_set/node/node_set#

Defines a link to an element set of a mesh or to an edge_set of a mesh. This link specifies the positions where the orientations, thicknesses, and other values are defined.

data_maps->data_map(named)->reference_directions#

n by 3 array of doubles.

Defines the reference directions using absolute direction vectors.

data_maps->data_map(named)->normals#

n by 3 array of doubles (optional).

Defines the normal directions using absolute direction vectors. If present, these vectors can be used to project the reference direction onto the plane defined by the normal.

data_maps->data_map(named)->matorient_1_angles#

n by 1 array of doubles (optional).

Defines the material orientation 1 angles with respect to the reference direction and the given normal.

data_maps->data_map(named)->matorient_2_angles#

n by 1 array of doubles (optional).

Defines the material orientation 2 angles with respect to the reference direction and the given normal.

data_maps->data_map(named)->thicknesses#

n by 1 array of doubles (optional).

Defines position dependent thickness values.

data_maps->data_map(named)->scalar_user_data->scalar_user_data(named)#

n by 1 array of doubles (optional).

User-defined scalar data fields. Only supported by Ansys.

Attribute

Type

Values

unit_type

string

“dimensionless”, “length”, “mass”, “time”, “temp” (default: “dimensionless”)

Component groups#

component_groups->component_group(named)#

Optional.

Component groups can be defined to store grouping information of components.

Change log#

Date

Description

May 5, 2010

ACP–FiberSIM Interface Format Specification Rev 01

June 5, 2010

HDF5 Composite CAE Data File Specification Proposal version 1.1

Aug 10, 2010

HDF5 Composite CAE Data File Specification Release Candidate 1 for stable version 1.0.

Aug 11, 2010

Minor updates in “Open Questions”, added Section “Specification of Node Names”

Aug 30, 2010

Upgrade specification to match all issues recently discussed with Vistagy via emails

Mar 17, 2011

Cleanup the document a little

Oct 17, 2014

Adding component_groups and component_group nodes

June 28, 2019

Adding some additional information

January 24, 2020

Corrected name for matorient_angles: “mat_orient1_angles” to “matorient_1_angles” and “mat_orient2_angles” to “matorient_2_angles”. Defined which fields in data_map are optional and specify what happens if optional nodes are missing. Clarified use of placement_coord_sys

September 15, 2020

Mentioned that global_coord_sys is currently not supported. Correct what happens when matorient_1_angles are not present

January 26, 2022

Mark material_data->fabrics->fabric(named)->orientations as obsolete

February 4, 2022

Change Href to Softlink for items that have to be linked with a Softlink

February 8, 2022

Correct datatype for element_labels, element_nodes and element_types (now int), clarified layer id

February 17, 2022

Clarified units specification, Mark optional material properties as optional

May 12, 2022

Add optional scalar_user_data data_map property

May 31, 2022

Improved formatting, Removed outdated future plans section. Added missing rosettes in component

May 22, 2023

Improve documentation of node order

May 15, 2024

Complete supported units

June 21, 2024

Clarified orientation

April 14, 2024

Some clarifications
